100µF, 6.3VDC polymer tantalum capacitor with 20% tolerance. Features 70mΩ ESR at 100kHz and a maximum operating temperature of 105°C. Surface mountable in a 3528 metric case (1411 imperial), measuring 3.5mm x 2.8mm x 1.9mm. Designed for general purpose applications, this RoHS compliant component is supplied on tape and reel.
Package1411
Voltage6.3V
Capacitance100uF
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Kemet T520B107M006ATE070 technical specifications.
General
Capacitance
100uF
Case Code (Imperial)
1411
Case Code (Metric)
3528
Package/Case
1411
Construction
Flat
Depth
2.8mm
Dielectric Material
Tantalum
Dissipation Factor
8%
ESR (Equivalent Series Resistance)
70mR
Features
General Purpose
Height
1.9mm
Lead Free
Lead Free
Lead Pitch
1.9mm
Leakage Current
63uA
Length
3.5mm
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
2000
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
300mA
RoHS Compliant
Yes
Series
KO-CAP® T520
Termination
SMD/SMT
Tolerance
20%
Voltage
6.3V
Voltage Rating
6.3V
DC Rated Voltage
6.3V
Width
2.8mm
Compliance
RoHS
Compliant
Datasheet
Kemet T520B107M006ATE070 Datasheet
Download the complete datasheet for Kemet T520B107M006ATE070 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

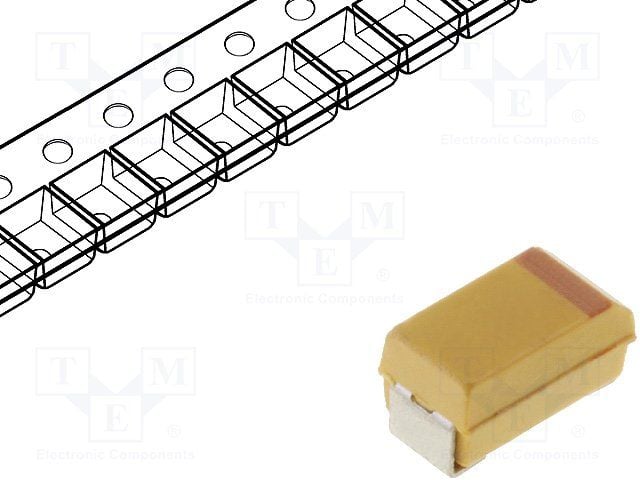

Product Images
