Polarized tantalum capacitor with 10µF capacitance and 63V DC rated voltage. Features 20% tolerance, 50mΩ ESR, and 10% dissipation factor. Surface mountable in a 2917 (7343 metric) case code, operating from -55°C to 125°C. Lead-free and RoHS compliant, with a leakage current of 29.6µA.
Package2917
Capacitance10uF
Voltage Rating63V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kemet T521X106M063ATE050 technical specifications.
General
Capacitance
10uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Dissipation Factor
10%
ESR (Equivalent Series Resistance)
50mR
Features
General Purpose
Lead Free
Lead Free
Leakage Current
29.6uA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
500
Packaging
Cut Tape
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
KO-CAP® T521
Termination
SMD/SMT
Tolerance
20%
Voltage Rating
63V
DC Rated Voltage
63V
Compliance
RoHS
Compliant
Datasheet
Kemet T521X106M063ATE050 Datasheet
Download the complete datasheet for Kemet T521X106M063ATE050 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

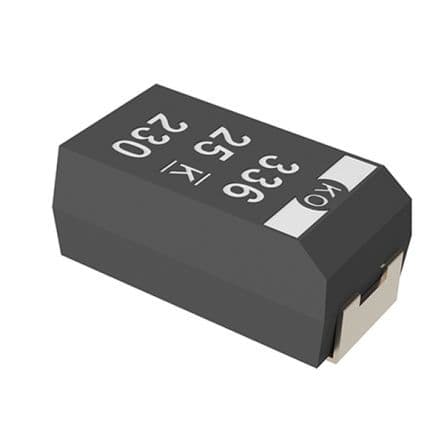

Product Images
