Polarized tantalum capacitor, 330µF capacitance, 16V DC rated voltage, 20% tolerance. Features 25mΩ ESR, 10% dissipation factor, and a 2917 (7343 metric) surface mount case. Operates from -55°C to 125°C, with dimensions of 7.3mm length, 4.3mm depth, and 4mm height. RoHS compliant and halogen-free.
Package2917
Capacitance330uF
Voltage Rating16V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kemet T521X337M016ATE025 technical specifications.
General
Capacitance
330uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dissipation Factor
10%
ESR (Equivalent Series Resistance)
25mR
Features
General Purpose
Height
4mm
Height - Seated (Max)
0.169inch
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Polarity
Polar
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
KO-CAP T521
Termination
SMD/SMT
Tolerance
20%
Voltage Rating
16V
DC Rated Voltage
16V
Width
0.169inch
Compliance
RoHS
Compliant
Datasheet
Kemet T521X337M016ATE025 Datasheet
Download the complete datasheet for Kemet T521X337M016ATE025 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

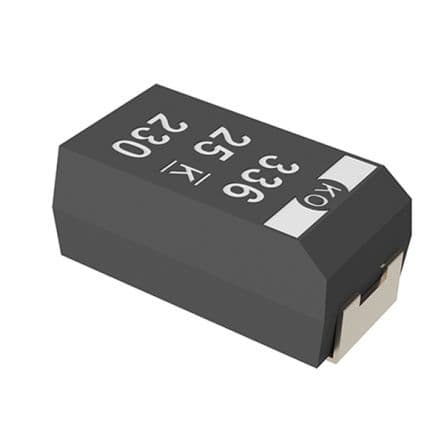

Product Images
