Surface mount tantalum capacitor, polarized, solid polymer construction, offering 330µF capacitance with a ±20% tolerance. Features a 6.3V DC rated voltage, 40mΩ ESR, and a maximum operating temperature of 125°C. Housed in a 2917 (7343 metric) case code, this general-purpose component is halogen-free and RoHS compliant, supplied on tape and reel.
Package2917
Capacitance330uF
Voltage Rating6.3V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kemet T525D337M006ATE040 technical specifications.
General
Capacitance
330uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dissipation Factor
10%
ESR (Equivalent Series Resistance)
40mR
Features
General Purpose
Height
3.1mm
Lead Free
Lead Free
Leakage Current
280uA
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
500
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
600uA
RoHS Compliant
Yes
Series
KO-CAP® T525
Termination
SMD/SMT
Tolerance
20%
Voltage Rating
6.3V
DC Rated Voltage
6.3V
Width
4.3mm
Compliance
RoHS
Compliant
Datasheet
Kemet T525D337M006ATE040 Datasheet
Download the complete datasheet for Kemet T525D337M006ATE040 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

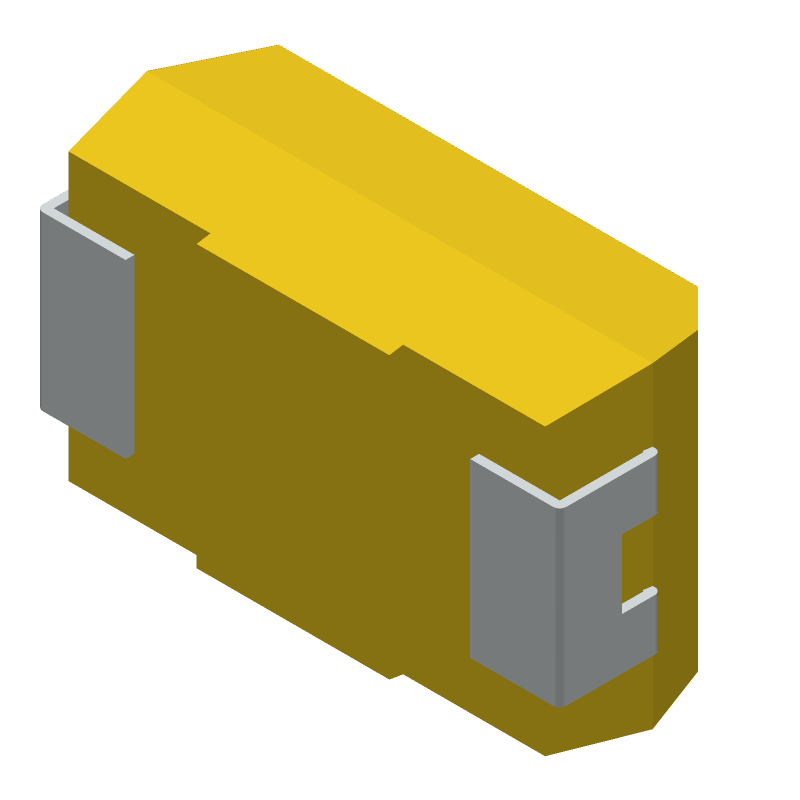

Product Images
