Single-cell battery holder for coin cells, featuring a PBT plastic body and nickel-plated steel spring contacts. Designed for PCB mounting via through-hole termination with PC pins. Operates reliably across a wide temperature range from -50°C to 145°C. UL approved and lead-free construction.
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Keystone Electronics 106 technical specifications.
General
Approvals
UL
Body Material
Plastic, PBT
Contact Material
Steel
Contact Plating
Nickel
Contact Type
Spring Steel
Diameter
20mm
Lead Free
Lead Free
Material
Steel, Plastic
Max Operating Temperature
145°C
Min Operating Temperature
-50°C
Mount
Through Hole, PCB
Number of Batteries
1
Number of Cells
1
Package Quantity
1
Packaging
Bulk
Reach SVHC Compliant
No
Termination
PC Pin
Compliance
RoHS
Compliant
Datasheet
Keystone Electronics 106 Datasheet
Download the complete datasheet for Keystone Electronics 106 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

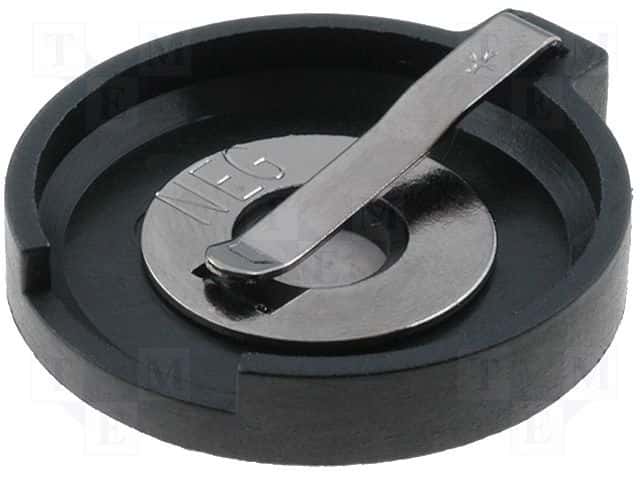

Product Images
