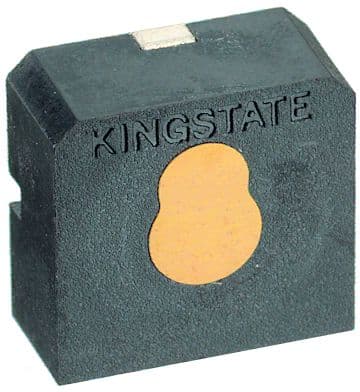

Kingstate
KMIG1240
Audio Indicator Piezo 3VDC 20VDC 8mA 12VDC 83dB 3500Hz to 4500Hz Surface Mount Solder Pad
Frequency4.5kHz
Current8mA
MountingPCB, Surface Mount
Quick Jump:
Technical Specifications
Kingstate KMIG1240 technical specifications.
General
Depth
16.9mm
Height
7.8mm
Length
16.9mm
Max Frequency
4.5kHz
Min Frequency
3.5kHz
Max Operating Temperature
70°C
Min Operating Temperature
-30°C
Max Supply Current
8mA
Max Supply Voltage
20V
Min Supply Voltage
3V
Mount
PCB, Surface Mount
Nominal Supply Voltage (DC)
12V
RoHS Compliant
Yes
Supply Current
8mA
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
Kingstate KMIG1240 Datasheet
Download the complete datasheet for Kingstate KMIG1240 to view detailed technical specifications.
