1A, 25V data line filter featuring 1 function and 150nF capacitance. Offers 37dB attenuation, operating from -55°C to 125°C. Housed in a 1206 EIA standard package with SMD/SMT termination. This RoHS compliant component is supplied on tape and reel.
Package1206
Current1A
Capacitance150nF
Voltage Rating25V
Quick Jump:
Technical Specifications
Knowles SBSPP0250154MXT technical specifications.
General
Attenuation Value
37dB
Capacitance
150nF
Case Code (Imperial)
1206
Package/Case
1206
Circuit Type
Filter
Current
1A
Current Rating
1A
ESD Protection
No
Height
1.6mm
Length
3.2mm
Max DC Current
1A
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Number of Channels
1
Package Quantity
1500
Packaging
Tape and Reel
RoHS Compliant
Yes
Series
SBSP
Termination
SMD/SMT
Tolerance
20%
Voltage Rating
25V
DC Rated Voltage
25V
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Knowles SBSPP0250154MXT Datasheet
Download the complete datasheet for Knowles SBSPP0250154MXT to view detailed technical specifications.
No datasheet is available for this part.

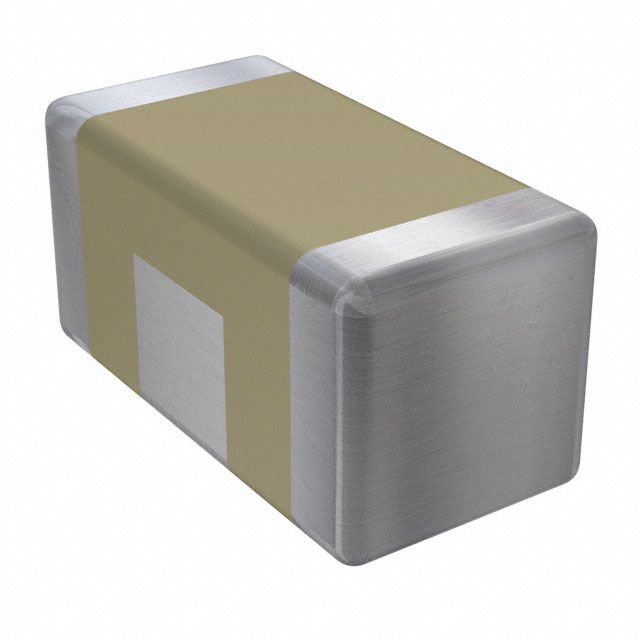

Product Images
