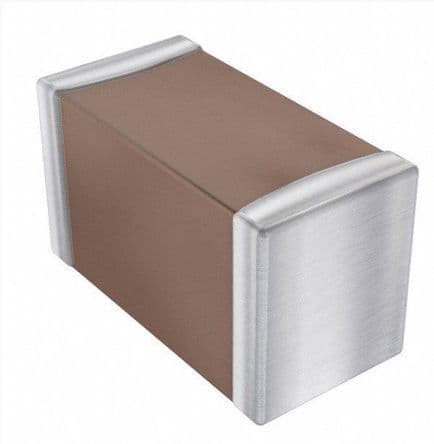

SMD Multilayer Ceramic Capacitor, 10nF capacitance, 50V voltage rating, and 10% tolerance. Features X7R dielectric material with a ±10% tolerance and a dissipation factor of 2.5%. Constructed with soft termination and ceramic dielectric, this component operates from -55°C to 125°C. Packaged in a 0603 [1608 Metric] case code for surface mounting, it is RoHS compliant and available in tape and reel packaging.
Package0603
Voltage50V
Capacitance10nF
Voltage Rating50V
Quick Jump:
Technical Specifications
Kyocera 06035C103KAZ2A technical specifications.
General
Capacitance
10nF
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Construction
Flat
Depth
0.81mm
Dielectric
X7R
Dielectric Material
Ceramic
Dissipation Factor
2.5%
Features
Soft Termination
Height
0.035mm
Lead Free
Lead Free
Length
1.6mm
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
4000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
FLEXITERM®
Termination
SMD/SMT
Thickness
0.035inch
Tolerance
10%
Voltage
50V
Voltage Rating
50V
Voltage Rating (AC)
50V
DC Rated Voltage
50V
Width
0.032inch
Compliance
RoHS
Compliant
Datasheet
Kyocera 06035C103KAZ2A Datasheet
Download the complete datasheet for Kyocera 06035C103KAZ2A to view detailed technical specifications.
