Surface mount ceramic capacitor with 47nF capacitance and 50V DC rating. Features X7R dielectric, 10% tolerance, and a 0603 (1608 metric) case size. Operates across a -55°C to 125°C temperature range. Constructed with soft termination and lead-free materials, this component is RoHS compliant.
Package0603
Voltage50V
Capacitance47nF
Voltage Rating50V
Quick Jump:
Technical Specifications
Kyocera 06035C473KAZ2A technical specifications.
General
| Capacitance | 47nF |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Construction | Flat |
| Depth | 1.25mm |
| Dielectric | X7R |
| Features | Soft Termination |
| Height | 0.035mm |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | FLEXITERM® |
| Termination | SMD/SMT |
| Thickness | 0.035inch |
| Tolerance | 10% |
| Voltage | 50V |
| Voltage Rating | 50V |
| Voltage Rating (AC) | 50V |
| DC Rated Voltage | 50V |
| Width | 0.032inch |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera 06035C473KAZ2A Datasheet
Download the complete datasheet for Kyocera 06035C473KAZ2A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

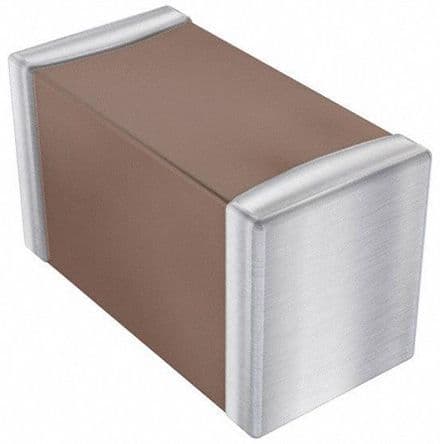

Product Images
