Surface mount ceramic capacitor with 470pF capacitance and 500V DC rating. Features X7R dielectric for stable performance across a -55°C to 125°C temperature range, with a 10% tolerance. Housed in a 1206 (3216 metric) case, this component offers a 2.5% dissipation factor and is RoHS compliant. Dimensions are 3.2mm length, 1.6mm depth, and 1.02mm height.
Package1206
Voltage500V
Capacitance470pF
Voltage Rating500V
Quick Jump:
Technical Specifications
Kyocera 12067C471KAT2A technical specifications.
General
| Capacitance | 470pF |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Construction | Flat |
| Depth | 1.6mm |
| Dielectric | X7R |
| Dissipation Factor | 2.5% |
| Height | 1.02mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Thickness | 0.04inch |
| Tolerance | 10% |
| Voltage | 500V |
| Voltage Rating | 500V |
| DC Rated Voltage | 500V |
| Width | 0.063inch |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera 12067C471KAT2A Datasheet
Download the complete datasheet for Kyocera 12067C471KAT2A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

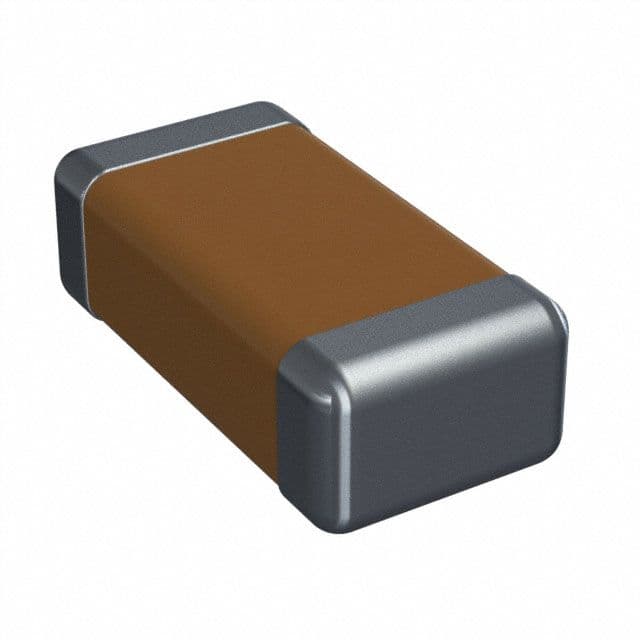

Product Images
