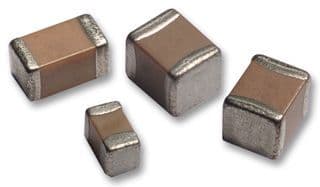

Surface mount multilayer ceramic capacitor with 1.5nF capacitance and 2kV DC rated voltage. Features X7R dielectric, 10% tolerance, and a 1808 [4520 Metric] case code. Operating temperature range from -55°C to 125°C. RoHS compliant and lead-free.
Package1808
Capacitance1.5nF
Voltage Rating2kV
MountingSurface Mount
Quick Jump:
Technical Specifications
Kyocera 1808GC152KAT1A technical specifications.
General
| Capacitance | 1.5nF |
| Case Code (Imperial) | 1808 |
| Case Code (Metric) | 4520 |
| Package/Case | 1808 |
| Construction | Flat |
| Depth | 2.03mm |
| Dielectric | X7R |
| Dissipation Factor | 2.5% |
| Height | 0.08inch |
| Lead Free | Lead Free |
| Length | 0.18inch |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage Rating | 2kV |
| DC Rated Voltage | 2kV |
| Width | 0.08inch |
Compliance
| RoHS | Compliant |
