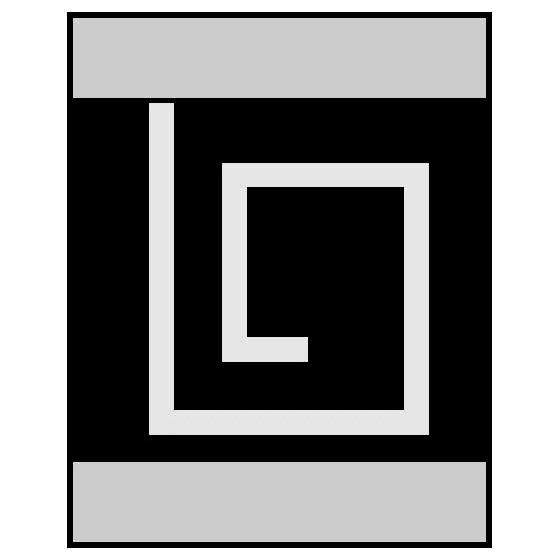

Kyocera
L08052R2DEWTR
Ind RF Chip Thin Film Multilayer 2.2nH 0.5nH 450MHz 42Q-Factor Ceramic 1A 0805 T/R
Package0805
Inductance2.2nH
Quick Jump:
Technical Specifications
Kyocera L08052R2DEWTR technical specifications.
General
Package/Case
0805
Core Material
Ceramic
Depth
1.6mm
Height
0.91mm
Inductance
2.2nH
Lead Free
Lead Free
Length
2.11mm
Max DC Current
2A
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Package Quantity
3000
Packaging
Tape and Reel
Q Factor
42
RoHS Compliant
No
Self Resonant Frequency
10GHz
Series
Accu-L 0603 and 0805
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
450MHz
Thickness
914um
Width
1.5mm
Compliance
RoHS
Not Compliant
Datasheet
Kyocera L08052R2DEWTR Datasheet
Download the complete datasheet for Kyocera L08052R2DEWTR to view detailed technical specifications.
