Bidirectional TVS Diode for surge suppression, featuring a 90V operating voltage and 100V reverse breakdown voltage. This surface mount component offers a 146V clamping voltage and 600W peak pulse power, with a 4.11A peak pulse current rating. Operating across a -55°C to 150°C temperature range, it presents a low 1µA leakage current.
PackageDO-214AA
MountingSurface Mount
PolarityBidirectional
Quick Jump:
Technical Specifications
Kyocera SMBJ90CA technical specifications.
General
Package/Case
DO-214AA
Clamping Voltage
146V
Diode Type
ZENER
Leakage Current
1uA
Max Breakdown Voltage
111V
Min Breakdown Voltage
100V
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
600W
Max Surge Current
4.11A
Mount
Surface Mount
Number of Bidirectional Channels
1
Number of Channels
1
Number of Elements
1
Operating Supply Voltage
90V
Package Quantity
1
Packaging
Cut Tape
Peak Pulse Current
4.11A
Peak Pulse Power
600W
Polarity
Bidirectional
Power Line Protection
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
100V
Reverse Standoff Voltage
90V
RoHS Compliant
Yes
Termination
SMD/SMT
Compliance
RoHS
Compliant
Datasheet
Kyocera SMBJ90CA Datasheet
Download the complete datasheet for Kyocera SMBJ90CA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

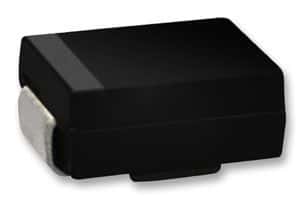

Product Images
