10µF, 10V Tantalum Capacitor, 20% tolerance, 1206 (3216 metric) case code. Features 3Ω ESR, 1µA leakage current, and a -55°C to +125°C operating temperature range. Surface mount, PCB termination with a 1.1mm lead pitch. RoHS compliant, general-purpose construction.
Package1206
Voltage10V
Capacitance10uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Kyocera TAJA106M010RNJ technical specifications.
General
Capacitance
10uF
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Construction
Flat
Depth
1.6mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
3R
Features
General Purpose
Height
1.6mm
Lead Free
Lead Free
Lead Pitch
1.1mm
Leakage Current
1uA
Length
3.2mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
2000
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TAJ
Termination
SMD/SMT
Tolerance
20%
Voltage
10V
Voltage Rating
10V
DC Rated Voltage
10V
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Kyocera TAJA106M010RNJ Datasheet
Download the complete datasheet for Kyocera TAJA106M010RNJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

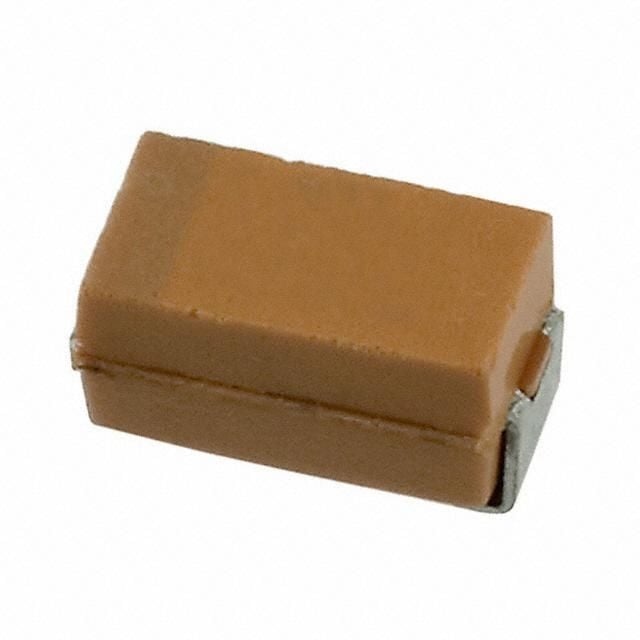

Product Images
