Surface mount tantalum capacitor with 150nF capacitance and 10% tolerance. Features a 35V DC voltage rating, 21 Ohms ESR, and 4% dissipation factor. Constructed with a flat tantalum dielectric in a 1206 (3216 metric) case. Operating temperature range from -55°C to 125°C. RoHS compliant and lead-free.
Package1206
Capacitance150nF
Resistance21R
Voltage Rating35V
Quick Jump:
Technical Specifications
Kyocera TAJA154K035RNJ technical specifications.
General
Capacitance
150nF
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Construction
Flat
Depth
1.6mm
Dielectric Material
Tantalum
Dissipation Factor
4%
ESR (Equivalent Series Resistance)
21R
Features
General Purpose
Height
1.8mm
Height - Seated (Max)
0.071inch
Lead Free
Lead Free
Leakage Current
500nA
Length
3.2mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Polarity
Polar
Q Factor
4
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
21R
RoHS Compliant
Yes
Series
TAJ
Termination
SMD/SMT
Tolerance
10%
Voltage Rating
35V
DC Rated Voltage
35V
Weight
0.000571oz
Width
0.063inch
Compliance
RoHS
Compliant
Datasheet
Kyocera TAJA154K035RNJ Datasheet
Download the complete datasheet for Kyocera TAJA154K035RNJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

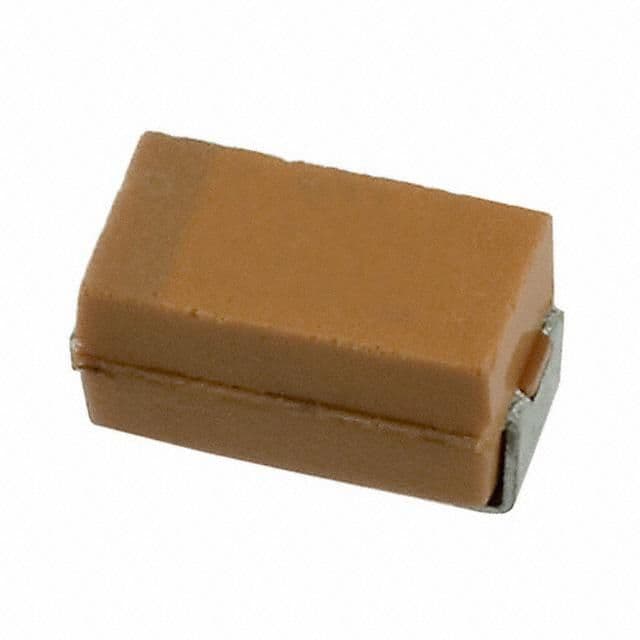

Product Images
