General purpose tantalum capacitor, 15µF capacitance with 10% tolerance, rated for 20V DC. Features a 6032 (2312) molded case construction with SMD/SMT termination for surface mount applications. Operates across a wide temperature range from -55°C to 125°C, offering low leakage current of 3µA and an ESR of 1.7Ω. This RoHS compliant component is supplied on tape and reel.
PackageMolded
Voltage20V
Capacitance15uF
Voltage Rating20V
Quick Jump:
Technical Specifications
Kyocera TAJC156K020RNJ technical specifications.
General
Capacitance
15uF
Case Code (Imperial)
2312
Case Code (Metric)
6032
Package/Case
Molded
Construction
Flat
Depth
3.2mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
1.7R
Features
General Purpose
Height
2.6mm
Height - Seated (Max)
0.11inch
Lead Free
Lead Free
Lead Pitch
2.9mm
Leakage Current
3uA
Length
6mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TAJ
Termination
SMD/SMT
Tolerance
10%
Voltage
20V
Voltage Rating
20V
DC Rated Voltage
20V
Width
3.2mm
Compliance
RoHS
Compliant
Datasheet
Kyocera TAJC156K020RNJ Datasheet
Download the complete datasheet for Kyocera TAJC156K020RNJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

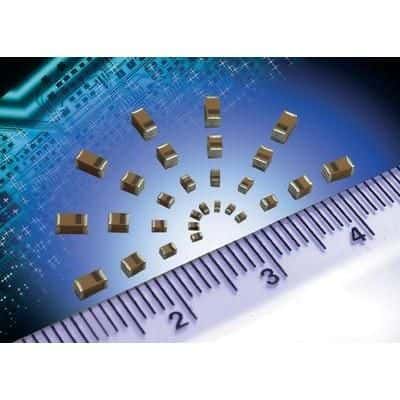

Product Images
