3.3µF, 35V polarized tantalum capacitor with 10% tolerance. Features a 2312 (6032) case code, 2.5Ω ESR, and 6% dissipation factor. Surface mount component with a maximum operating temperature of 125°C and a minimum of -55°C. Includes 1.2µA leakage current and 210mA ripple current.
Package2412
Capacitance3.3uF
Voltage Rating35V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kyocera TAJC335K035RNJ technical specifications.
General
Capacitance
3.3uF
Case Code (Imperial)
2312
Case Code (Metric)
6032
Package/Case
2412
Construction
Flat
Depth
3.2mm
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
2.5R
Features
General Purpose
Height
2.8mm
Height - Seated (Max)
0.11inch
Lead Free
Lead Free
Leakage Current
1.2uA
Length
6mm
Life (Hours)
2000Hour
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Polarity
Polar
Q Factor
6
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
210mA
RoHS Compliant
Yes
Series
TAJ
Termination
SMD/SMT
Tolerance
10%
Voltage Rating
35V
DC Rated Voltage
35V
Width
0.126inch
Compliance
RoHS
Compliant
Datasheet
Kyocera TAJC335K035RNJ Datasheet
Download the complete datasheet for Kyocera TAJC335K035RNJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

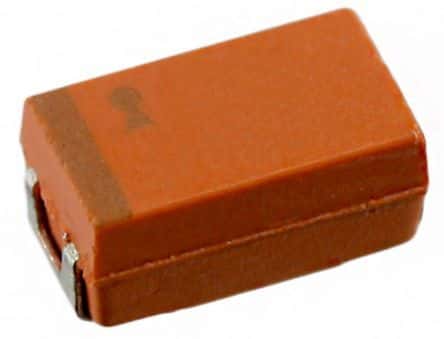

Product Images
