10µF, 50V DC solid manganese dioxide tantalum electrolytic capacitor for general-purpose applications. Features a 10% tolerance, 800mΩ ESR, and 5µA leakage current. Surface mountable in a 2917 (7343 metric) case with a maximum operating temperature of 125°C. RoHS compliant and lead-free.
Package2917
Voltage50V
Capacitance10uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Kyocera TAJD106K050RNJ technical specifications.
General
Capacitance
10uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
800mR
Features
General Purpose
Height
2.9mm
Lead Free
Lead Free
Leakage Current
5uA
Length
7.3mm
Life (Hours)
2000Hour
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
500
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
433mA
RoHS Compliant
Yes
Series
TAJ
Termination
SMD/SMT
Tolerance
10%
Voltage
50V
Voltage Rating
50V
Voltage Rating (AC)
50V
DC Rated Voltage
50V
Width
4.3mm
Compliance
RoHS
Compliant
Datasheet
Kyocera TAJD106K050RNJ Datasheet
Download the complete datasheet for Kyocera TAJD106K050RNJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

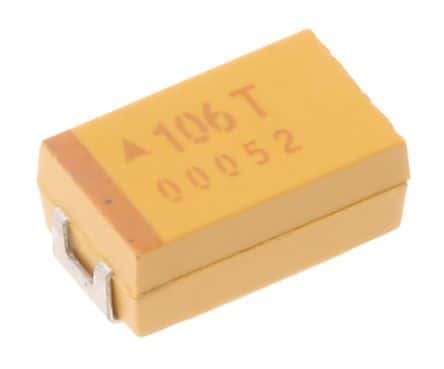

Product Images
