Surface mount tantalum capacitor, 10µF capacitance, 35V DC rated voltage, 20% tolerance. Features a 2917 (7343 metric) case code, 4.3mm width, 2.9mm height, and 7.3mm length. Offers 1Ω ESR, 6% dissipation factor, and 3.5µA leakage current. Operates from -55°C to 125°C, constructed with a flat tantalum dielectric, and is RoHS compliant.
Package2917
Voltage35V
Capacitance10uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Kyocera TAJD106M035RNJ technical specifications.
General
Capacitance
10uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
1R
Features
General Purpose
Height
2.9mm
Lead Free
Lead Free
Lead Pitch
4.4mm
Leakage Current
3.5uA
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
500
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TAJ
Termination
SMD/SMT
Tolerance
20%
Voltage
35V
Voltage Rating
35V
DC Rated Voltage
35V
Width
4.3mm
Compliance
RoHS
Compliant
Datasheet
Kyocera TAJD106M035RNJ Datasheet
Download the complete datasheet for Kyocera TAJD106M035RNJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

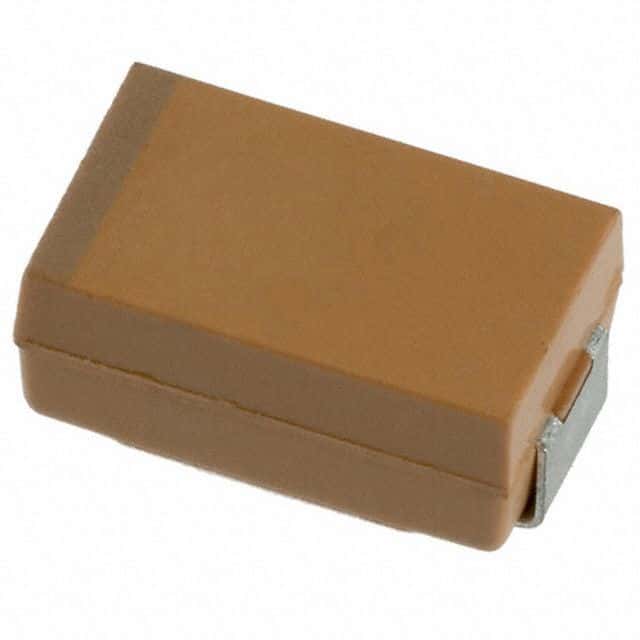

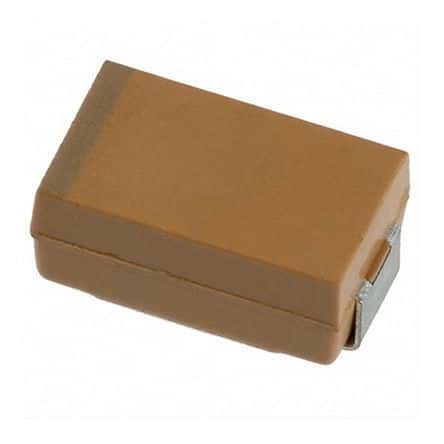

Product Images
