Surface mount tantalum capacitor, 47µF capacitance, 10% tolerance, 35V DC rated voltage. Features a 2917 (7343 metric) case code, 900mΩ ESR, and 16.5µA leakage current. Operating temperature range from -55°C to 125°C, with a ripple current rating of 428mA. RoHS compliant and lead-free construction.
Package2917
Voltage35V
Capacitance47uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Kyocera TAJE476K035RNJ technical specifications.
General
Capacitance
47uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
900mR
Features
General Purpose
Height
4.1mm
Lead Free
Lead Free
Leakage Current
16.5uA
Length
7.3mm
Life (Hours)
2000Hour
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
400
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
428mA
RoHS Compliant
Yes
Series
TAJ
Termination
SMD/SMT
Tolerance
10%
Voltage
35V
Voltage Rating
35V
Voltage Rating (AC)
35V
DC Rated Voltage
35V
Width
4.3mm
Compliance
RoHS
Compliant
Datasheet
Kyocera TAJE476K035RNJ Datasheet
Download the complete datasheet for Kyocera TAJE476K035RNJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

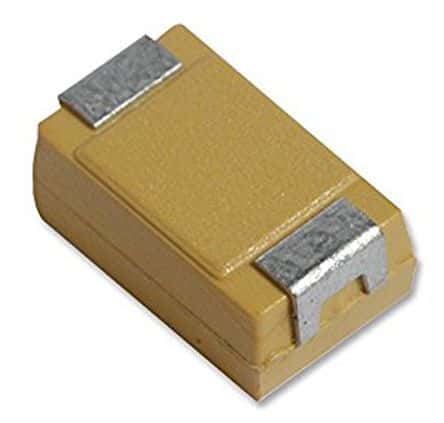

Product Images
