Surface mount tantalum capacitor with 33uF capacitance and 20% tolerance. Features a 6.3V DC rated voltage and 3R ESR. Constructed with a flat tantalum dielectric in an 0805 (2012 metric) case code. Operating temperature range from -55°C to 125°C. RoHS compliant with a 2uA leakage current and 135mA ripple current.
Package0805
Voltage6.3V
Capacitance33uF
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Kyocera TLJR336M006R3000 technical specifications.
General
Capacitance
33uF
Case Code (Imperial)
0805
Case Code (Metric)
2012
Package/Case
0805
Construction
Flat
Depth
1.3mm
Dielectric Material
Tantalum
ESR (Equivalent Series Resistance)
3R
Features
General Purpose
Height
1.2mm
Height - Seated (Max)
0.047inch
Lead Free
Lead Free
Lead Pitch
0.85mm
Leakage Current
2uA
Length
2.05mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
135mA
RoHS Compliant
Yes
Series
TLJ
Termination
SMD/SMT
Tolerance
20%
Voltage
6.3V
Voltage Rating
6.3V
DC Rated Voltage
6.3V
Width
0.051inch
Compliance
RoHS
Compliant
Datasheet
Kyocera TLJR336M006R3000 Datasheet
Download the complete datasheet for Kyocera TLJR336M006R3000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

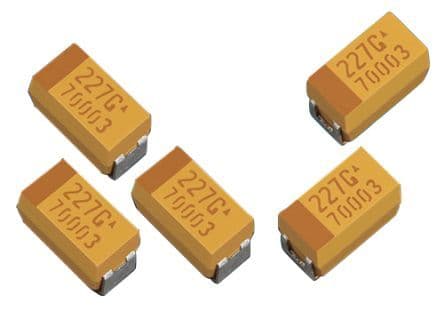

Product Images
