Solid tantalum capacitor with 470µF capacitance and 10V DC rated voltage. Features 23mΩ ESR, 6% dissipation factor, and 47µA leakage current. Surface mountable in a 7343 metric / 2917 imperial case code, measuring 7.3mm L x 4.3mm W x 4.1mm H. Operates from -55°C to 125°C with 10% tolerance.
Package2917
Voltage10V
Capacitance470uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Kyocera TPME477M010R0023 technical specifications.
General
Capacitance
470uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
23mR
Features
General Purpose
Height
4.1mm
Lead Free
Lead Free
Lead Pitch
4.4mm
Leakage Current
47uA
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
400
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
1.37mA
RoHS Compliant
Yes
Series
TPM
Termination
SMD/SMT
Tolerance
10%
Voltage
10V
Voltage Rating
10V
DC Rated Voltage
10V
Width
4.3mm
Compliance
RoHS
Compliant
Datasheet
Kyocera TPME477M010R0023 Datasheet
Download the complete datasheet for Kyocera TPME477M010R0023 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

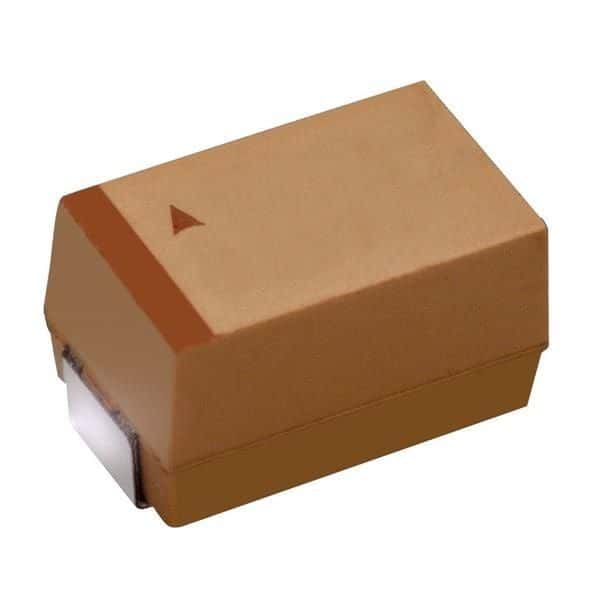

Product Images
