Solid Tantalum Capacitor, 33µF capacitance, 6.3V DC rated voltage, 10% tolerance. Features 600mΩ ESR, 8% dissipation factor, and 2.1µA leakage current. Surface mountable in a 3216 metric / 1206 imperial case code, measuring 3.2mm x 1.6mm x 1.6mm. Operates from -55°C to 125°C, supplied on tape and reel.
Package1206
Voltage6.3V
Capacitance33uF
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Kyocera TPSA336K006R0600 technical specifications.
General
| Capacitance | 33uF |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Construction | Flat |
| Depth | 1.6mm |
| Dielectric Material | Tantalum |
| Dissipation Factor | 8% |
| ESR (Equivalent Series Resistance) | 600mR |
| Features | General Purpose |
| Height | 1.6mm |
| Lead Free | Lead Free |
| Leakage Current | 2.1uA |
| Length | 3.2mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 141uA |
| RoHS Compliant | Yes |
| Series | TPS |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage | 6.3V |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera TPSA336K006R0600 Datasheet
Download the complete datasheet for Kyocera TPSA336K006R0600 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

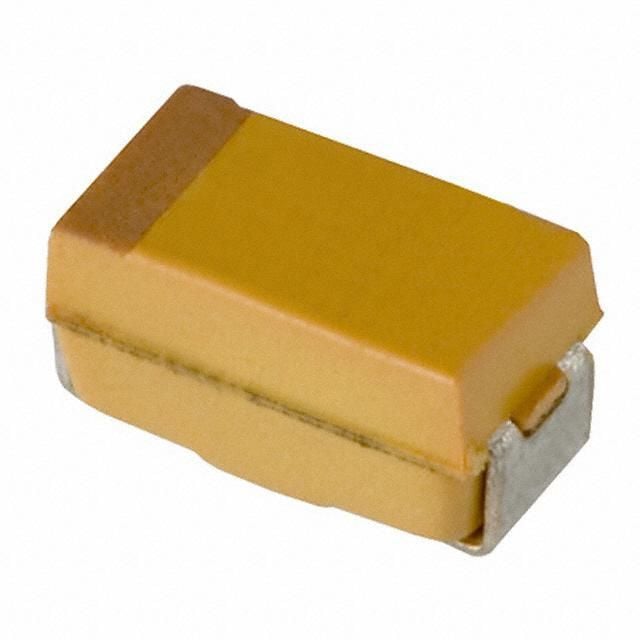

Product Images
