Solid Tantalum Capacitor, 3.3µF capacitance, 25V DC rated voltage, and 10% tolerance. Features a 750mΩ ESR and a maximum operating temperature of 125°C. Surface mountable in a 3528 metric (1210 imperial) case with dimensions of 3.5mm length, 2.8mm width, and 1.9mm height. Packaged on tape and reel for automated assembly.
Package1210
Voltage25V
Capacitance3.3uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Kyocera TPSB335K025R0750 technical specifications.
General
Capacitance
3.3uF
Case Code (Imperial)
1210
Case Code (Metric)
3528
Package/Case
1210
Construction
Flat
Depth
2.8mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
750mR
Features
General Purpose
Height
1.9mm
Height - Seated (Max)
0.083inch
Lead Free
Lead Free
Leakage Current
800nA
Length
3.5mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
2000
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TPS
Termination
SMD/SMT
Tolerance
10%
Voltage
25V
Voltage Rating
25V
DC Rated Voltage
25V
Weight
0.000564oz
Width
2.8mm
Compliance
RoHS
Compliant
Datasheet
Kyocera TPSB335K025R0750 Datasheet
Download the complete datasheet for Kyocera TPSB335K025R0750 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

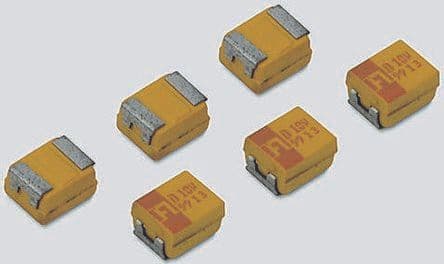

Product Images
