Solid tantalum capacitor, 100µF capacitance, 6.3V DC rated voltage, 10% tolerance. Features 150mΩ ESR and 6.3µA leakage current. Surface mountable in a 6032 metric case (6mm x 3.2mm x 2.6mm), operating from -55°C to 125°C. Lead-free and RoHS compliant.
Package6032-28
Voltage6.3V
Capacitance100uF
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Kyocera TPSC107K006R0150 technical specifications.
General
Capacitance
100uF
Case Code (Imperial)
2312
Case Code (Metric)
6032
Package/Case
6032-28
Construction
Flat
Depth
3.2mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
150mR
Features
General Purpose
Height
2.6mm
Height - Seated (Max)
0.11inch
Lead Free
Lead Free
Leakage Current
6.3uA
Length
6mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TPS
Termination
SMD/SMT
Tolerance
10%
Voltage
6.3V
Voltage Rating
6.3V
DC Rated Voltage
6.3V
Width
3.2mm
Compliance
RoHS
Compliant
Datasheet
Kyocera TPSC107K006R0150 Datasheet
Download the complete datasheet for Kyocera TPSC107K006R0150 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

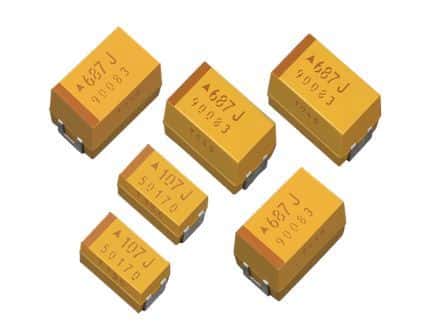

Product Images
