Solid Tantalum Capacitor, 100µF capacitance, 10V DC rated voltage, and 10% tolerance. Features a 100mΩ ESR, 10µA leakage current, and 1.049A ripple current. This surface mount component operates from -55°C to 125°C, with a 2000-hour life rating. The 6032 metric case size measures 6mm x 3.2mm x 2.6mm, with inward L terminations.
Package6032-28
Voltage10V
Storage2.6mm
Capacitance100uF
Quick Jump:
Technical Specifications
Kyocera TPSC107K010R0100 technical specifications.
General
Capacitance
100uF
Case Code (Imperial)
2312
Case Code (Metric)
6032
Package/Case
6032-28
Construction
Flat
Depth
3.2mm
Dielectric Material
Tantalum
Dissipation Factor
8%
ESR (Equivalent Series Resistance)
100mR
Features
General Purpose
Height
2.6mm
Lead Free
Lead Free
Lead Pitch
2.9mm
Leakage Current
10uA
Length
6mm
Life (Hours)
2000Hour
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
500
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
1.049A
RoHS Compliant
Yes
Series
TPS
Size
2.6mm
Termination
SMD/SMT
Tolerance
10%
Voltage
10V
Voltage Rating
10V
DC Rated Voltage
10V
Width
3.2mm
Compliance
RoHS
Compliant
Datasheet
Kyocera TPSC107K010R0100 Datasheet
Download the complete datasheet for Kyocera TPSC107K010R0100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

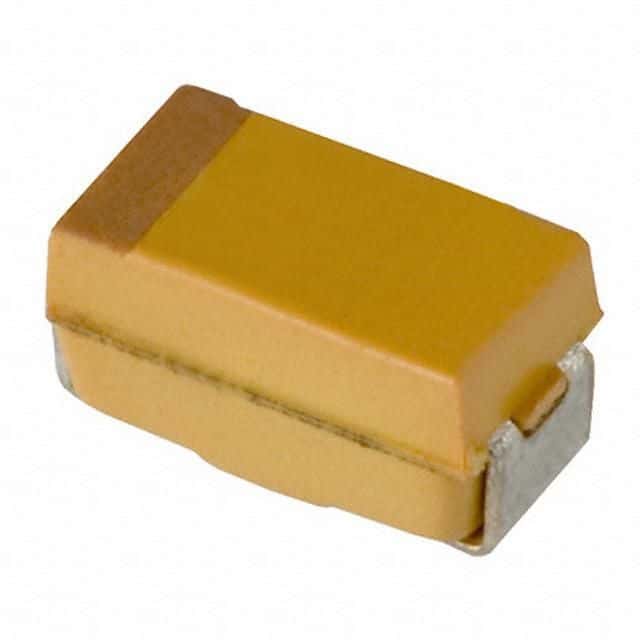

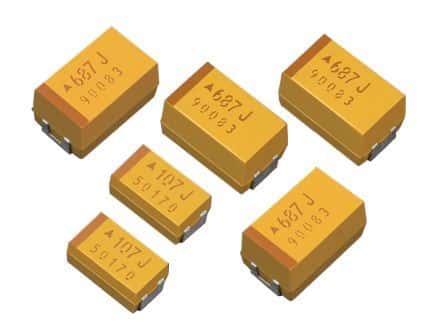

Product Images
