Solid Tantalum Capacitor, 22µF capacitance, 25V DC rated voltage, 10% tolerance. Features 275mΩ ESR, 5.5µA leakage current, and a maximum operating temperature of 125°C. Surface mountable in a 6032 metric case code (6mm x 3.2mm x 2.6mm), this general-purpose component is RoHS compliant and supplied on tape and reel.
Package2412
Voltage25V
Storage2.6mm
Capacitance22uF
Quick Jump:
Technical Specifications
Kyocera TPSC226K025R0275 technical specifications.
General
Capacitance
22uF
Case Code (Imperial)
2312
Case Code (Metric)
6032
Package/Case
2412
Construction
Flat
Depth
3.2mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
275mR
Features
General Purpose
Height
2.6mm
Height - Seated (Max)
0.11inch
Lead Free
Lead Free
Lead Pitch
2.9mm
Leakage Current
5.5uA
Length
6mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TPS
Size
2.6mm
Termination
SMD/SMT
Tolerance
10%
Voltage
25V
Voltage Rating
25V
DC Rated Voltage
25V
Width
0.126inch
Compliance
RoHS
Compliant
Datasheet
Kyocera TPSC226K025R0275 Datasheet
Download the complete datasheet for Kyocera TPSC226K025R0275 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

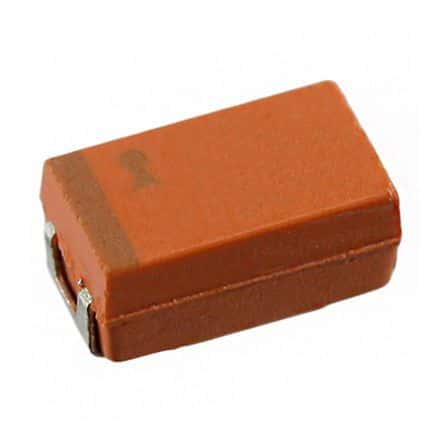

Product Images
