Solid Tantalum Capacitor, 4.7µF capacitance, 35V voltage rating, and 10% tolerance. Features 600mΩ ESR, 1.6µA leakage current, and a maximum operating temperature of 125°C. Surface mountable with a 6mm length, 3.2mm width, and 2.6mm height, this component is supplied in tape and reel packaging.
PackageMolded
Voltage35V
Capacitance4.7uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Kyocera TPSC475K035R0600 technical specifications.
General
Capacitance
4.7uF
Case Code (Imperial)
2312
Case Code (Metric)
6032
Package/Case
Molded
Construction
Flat
Depth
3.2mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
600mR
Features
General Purpose
Height
2.6mm
Height - Seated (Max)
0.11inch
Lead Free
Lead Free
Leakage Current
1.6uA
Length
6mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TPS
Termination
SMD/SMT
Tolerance
10%
Voltage
35V
Voltage Rating
35V
Voltage Rating (AC)
35V
DC Rated Voltage
35V
Width
3.2mm
Compliance
RoHS
Compliant
Datasheet
Kyocera TPSC475K035R0600 Datasheet
Download the complete datasheet for Kyocera TPSC475K035R0600 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

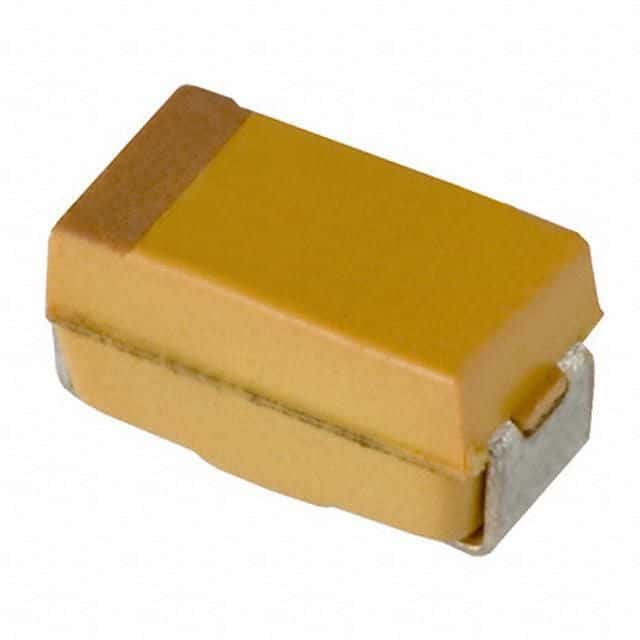

Product Images
