Solid Tantalum Capacitor, 100µF capacitance, 10V DC rated voltage, and 10% tolerance. Features a low 50mΩ ESR, 10µA leakage current, and 693µA ripple current. Encased in a 7343-31 metric / 2917 imperial SMD package with dimensions of 7.3mm x 4.3mm x 2.9mm. Operates from -55°C to 125°C, suitable for general-purpose applications, and supplied on tape and reel.
Package2917
Voltage10V
Capacitance100uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Kyocera TPSD107K010R0050 technical specifications.
General
Capacitance
100uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
50mR
Features
General Purpose
Height
2.9mm
Lead Free
Lead Free
Leakage Current
10uA
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
693uA
RoHS Compliant
Yes
Series
TPS
Termination
SMD/SMT
Tolerance
10%
Voltage
10V
Voltage Rating
10V
DC Rated Voltage
10V
Weight
0.023634oz
Width
4.3mm
Compliance
RoHS
Compliant
Datasheet
Kyocera TPSD107K010R0050 Datasheet
Download the complete datasheet for Kyocera TPSD107K010R0050 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

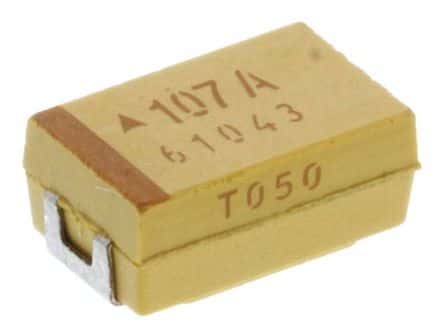

Product Images
