Surface mount tantalum capacitor, 100 µF capacitance, 10 V DC rated voltage, and 10% tolerance. Features a 7343 metric case code (2917 imperial), 100 mΩ ESR, and 10 µA leakage current. Operating temperature range from -55 °C to 125 °C. General purpose, lead-free, RoHS compliant, and supplied on tape and reel.
Package7343-31
Voltage10V
Storage2.9mm
Capacitance100uF
Quick Jump:
Technical Specifications
Kyocera TPSD107K010R0100 technical specifications.
General
| Capacitance | 100uF |
| Case Code (Imperial) | 2917 |
| Case Code (Metric) | 7343 |
| Package/Case | 7343-31 |
| Construction | Flat |
| Depth | 4.3mm |
| Dielectric Material | Tantalum |
| Dissipation Factor | 6% |
| ESR (Equivalent Series Resistance) | 100mR |
| Features | General Purpose |
| Height | 2.9mm |
| Lead Free | Lead Free |
| Leakage Current | 10uA |
| Length | 7.3mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | TPS |
| Size | 2.9mm |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 10V |
| Voltage Rating | 10V |
| Voltage Rating (AC) | 10V |
| DC Rated Voltage | 10V |
| Width | 4.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera TPSD107K010R0100 Datasheet
Download the complete datasheet for Kyocera TPSD107K010R0100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

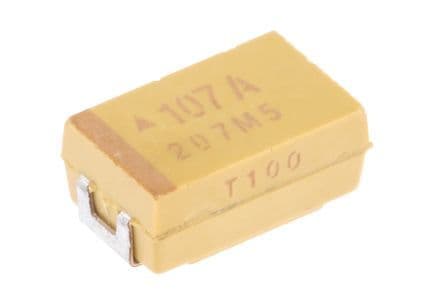

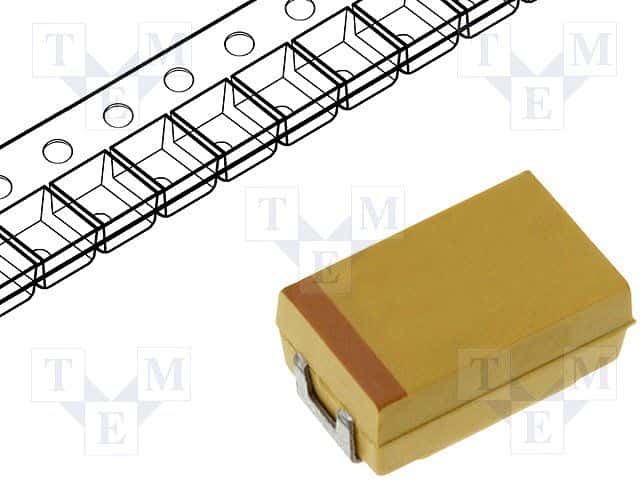

Product Images
