Solid Tantalum Capacitor, 220µF capacitance, 4V DC rated voltage, and 10% tolerance. Features a low 50mΩ ESR and 8.8µA leakage current. Surface mountable with a 7343-31 case code (2917 imperial), measuring 7.3mm L x 4.3mm W x 2.9mm H. Operates from -55°C to 125°C, supplied in tape and reel packaging.
Package2917
Voltage4V
Capacitance220uF
Voltage Rating4V
Quick Jump:
Technical Specifications
Kyocera TPSD227K004R0050 technical specifications.
General
Capacitance
220uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dielectric Material
Tantalum
Dissipation Factor
8%
ESR (Equivalent Series Resistance)
50mR
Features
General Purpose
Height
2.9mm
Height - Seated (Max)
0.122inch
Lead Free
Lead Free
Leakage Current
8.8uA
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TPS
Termination
SMD/SMT
Tolerance
10%
Voltage
4V
Voltage Rating
4V
DC Rated Voltage
4V
Weight
0.023634oz
Width
4.3mm
Compliance
RoHS
Compliant
Datasheet
Kyocera TPSD227K004R0050 Datasheet
Download the complete datasheet for Kyocera TPSD227K004R0050 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

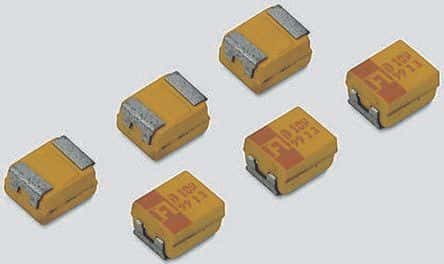

Product Images
