Solid Tantalum Capacitor, 330µF capacitance, 10V DC rated voltage, and 10% tolerance. Features 100mΩ ESR, 33µA leakage current, and a maximum operating temperature of 125°C. Surface mountable with a 7343 metric case code (2917 imperial), this polar capacitor is designed for general purpose applications and is supplied in tape and reel packaging.
Package2917
Voltage10V
Capacitance330uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Kyocera TPSD337K010R0100 technical specifications.
General
Approvals
IEC
Capacitance
330uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dielectric Material
Tantalum
Dissipation Factor
8%
ESR (Equivalent Series Resistance)
100mR
Features
General Purpose
Height
2.9mm
Height - Seated (Max)
0.122inch
Lead Free
Lead Free
Lead Pitch
4.4mm
Leakage Current
33uA
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
490uA
RoHS Compliant
Yes
Series
TPS
Termination
SMD/SMT
Tolerance
10%
Voltage
10V
Voltage Rating
10V
DC Rated Voltage
10V
Weight
0.023634oz
Width
0.169inch
Compliance
RoHS
Compliant
Datasheet
Kyocera TPSD337K010R0100 Datasheet
Download the complete datasheet for Kyocera TPSD337K010R0100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

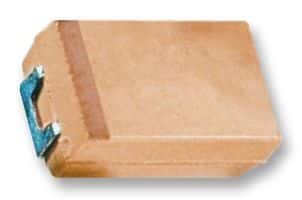

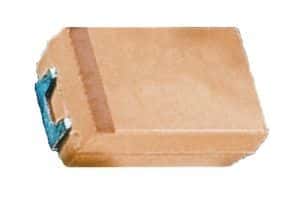

Product Images
