Solid tantalum capacitor, 47µF capacitance, 16V voltage rating, and 20% tolerance. Features 150mΩ ESR, 7.5µA leakage current, and 400µA ripple current. Operates from -55°C to 125°C with a 6% dissipation factor. Surface mountable in a 7343 metric case code (2917 imperial), measuring 7.3mm x 4.3mm x 2.9mm. Lead-free and RoHS compliant.
Package2917
Voltage16V
Capacitance47uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Kyocera TPSD476M016R0150 technical specifications.
General
Approvals
IEC
Capacitance
47uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
150mR
Features
General Purpose
Height
2.9mm
Height - Seated (Max)
0.122inch
Lead Free
Lead Free
Lead Pitch
4.4mm
Leakage Current
7.5uA
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
400uA
RoHS Compliant
Yes
Series
TPS
Termination
SMD/SMT
Tolerance
20%
Voltage
16V
Voltage Rating
16V
DC Rated Voltage
16V
Weight
0.023634oz
Width
0.169inch
Compliance
RoHS
Compliant
Datasheet
Kyocera TPSD476M016R0150 Datasheet
Download the complete datasheet for Kyocera TPSD476M016R0150 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

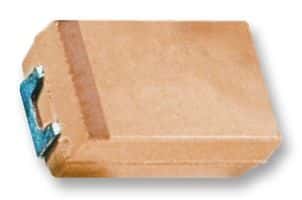

Product Images
