100µF, 20V polarized tantalum capacitor with 10% tolerance. Features 150mΩ ESR, 6% dissipation factor, and 20µA leakage current. Surface mountable in a 2917 (7343 metric) case code, this general-purpose component operates from -55°C to 125°C. RoHS compliant and lead-free.
Package2917
Voltage20V
Capacitance100uF
Voltage Rating20V
Quick Jump:
Technical Specifications
Kyocera TPSE107K020R0150 technical specifications.
General
Capacitance
100uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
150mR
Features
General Purpose
Height
4.1mm
Height - Seated (Max)
0.169inch
Lead Free
Lead Free
Leakage Current
20uA
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
420uA
RoHS Compliant
Yes
Series
TPS
Termination
SMD/SMT
Tolerance
10%
Voltage
20V
Voltage Rating
20V
Voltage Rating (AC)
20V
DC Rated Voltage
20V
Weight
0.023634oz
Width
4.3mm
Compliance
RoHS
Compliant
Datasheet
Kyocera TPSE107K020R0150 Datasheet
Download the complete datasheet for Kyocera TPSE107K020R0150 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

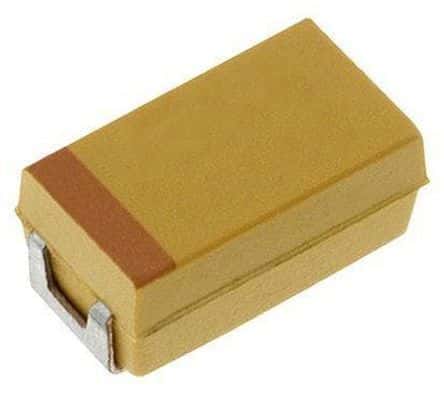

Product Images
