Surface mount tantalum capacitor, 100µF capacitance, 20% tolerance, and 16V DC rated voltage. Features a 2917 (7343 metric) case code, 100mΩ ESR, and 6% dissipation factor. Operating temperature range from -55°C to 125°C, with a leakage current of 16µA. RoHS compliant and lead-free construction.
Package2917
Voltage16V
Capacitance100uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Kyocera TPSE107M016R0100 technical specifications.
General
Approvals
IEC
Capacitance
100uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
100mR
Features
General Purpose
Height
4.1mm
Lead Free
Lead Free
Lead Pitch
4.4mm
Leakage Current
16uA
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
514uA
RoHS Compliant
Yes
Series
TPS
Termination
SMD/SMT
Tolerance
20%
Voltage
16V
Voltage Rating
16V
DC Rated Voltage
16V
Weight
0.023634oz
Width
4.3mm
Compliance
RoHS
Compliant
Datasheet
Kyocera TPSE107M016R0100 Datasheet
Download the complete datasheet for Kyocera TPSE107M016R0100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

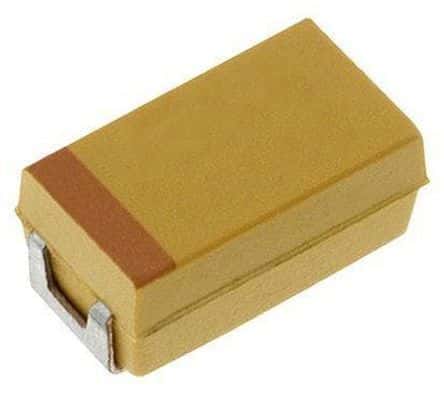

Product Images
