Solid Tantalum Capacitor, 47µF capacitance, 25V voltage rating. Features 80mΩ ESR, 125°C maximum operating temperature, and 10% tolerance. Surface mountable in a 7343 metric case code (2917 imperial), measuring 7.3mm x 4.3mm x 4.1mm. RoHS compliant with a 480µA leakage current.
Package2917
Voltage25V
Capacitance47uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Kyocera TPSE476K025R0080 technical specifications.
General
Capacitance
47uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
80mR
Features
General Purpose
Height
4.1mm
Height - Seated (Max)
0.169inch
Lead Free
Lead Free
Leakage Current
480uA
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
400
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
574uA
RoHS Compliant
Yes
Series
TPS
Termination
SMD/SMT
Tolerance
10%
Voltage
25V
Voltage Rating
25V
DC Rated Voltage
25V
Weight
0.023634oz
Width
4.3mm
Compliance
RoHS
Compliant
Datasheet
Kyocera TPSE476K025R0080 Datasheet
Download the complete datasheet for Kyocera TPSE476K025R0080 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

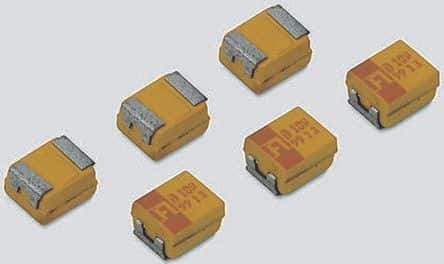

Product Images
