Solid Tantalum Capacitor, 68µF capacitance, 20V DC rated voltage, and 20% tolerance. Features a 150mΩ ESR and 6% dissipation factor. This surface mount component operates from -55°C to 125°C, with a 7.3mm length, 4.3mm width, and 4.1mm height. Designed for general purpose applications, it is RoHS compliant and supplied in tape and reel packaging.
Package2917
Voltage20V
Capacitance68uF
Voltage Rating20V
Quick Jump:
Technical Specifications
Kyocera TPSE686M020R0150 technical specifications.
General
Approvals
IEC
Capacitance
68uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
150mR
Features
General Purpose
Height
4.1mm
Lead Free
Lead Free
Lead Pitch
4.4mm
Leakage Current
13.6uA
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
420uA
RoHS Compliant
Yes
Series
TPS
Termination
SMD/SMT
Tolerance
20%
Voltage
20V
Voltage Rating
20V
DC Rated Voltage
20V
Weight
0.023634oz
Width
4.3mm
Compliance
RoHS
Compliant
Datasheet
Kyocera TPSE686M020R0150 Datasheet
Download the complete datasheet for Kyocera TPSE686M020R0150 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

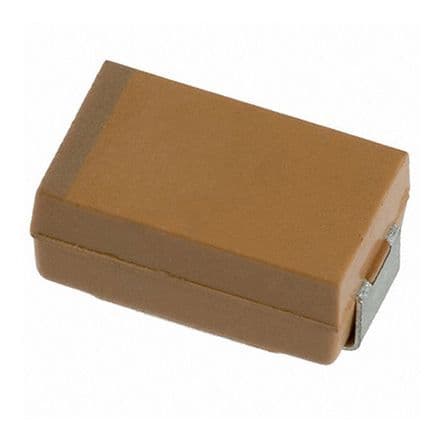

Product Images
