Solid Tantalum Capacitor, 100µF capacitance, 25V DC rated voltage, and 10% tolerance. Features 100mΩ ESR, 8% dissipation factor, and 25µA leakage current. Designed for surface mount applications with a 7361 metric case size (7.3mm L x 6.1mm W x 3.8mm H). Operates from -55°C to 125°C and is RoHS compliant. Packaged in tape and reel for automated assembly.
Package2924
Voltage25V
Capacitance100uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Kyocera TPSV107K025R0100 technical specifications.
General
Capacitance
100uF
Case Code (Imperial)
2924
Case Code (Metric)
7361
Package/Case
2924
Construction
Flat
Depth
6.1mm
Dielectric Material
Tantalum
Dissipation Factor
8%
ESR (Equivalent Series Resistance)
100mR
Features
General Purpose
Height
3.8mm
Lead Free
Lead Free
Lead Pitch
4.4mm
Leakage Current
25uA
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
400
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TPS
Termination
SMD/SMT
Tolerance
10%
Voltage
25V
Voltage Rating
25V
DC Rated Voltage
25V
Width
6.1mm
Compliance
RoHS
Compliant
Datasheet
Kyocera TPSV107K025R0100 Datasheet
Download the complete datasheet for Kyocera TPSV107K025R0100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

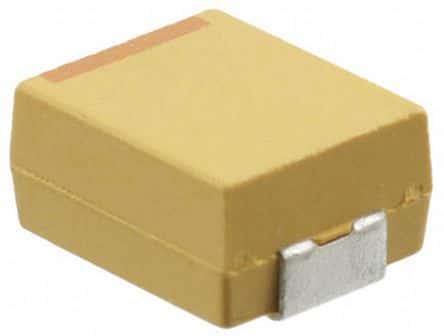

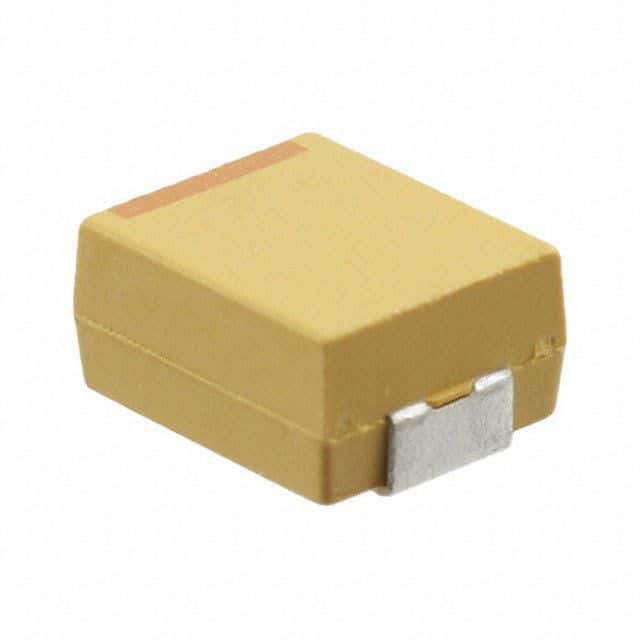

Product Images
