Solid Tantalum Capacitor, 470µF capacitance, 10V DC rated voltage, and 10% tolerance. Features a low 60mΩ ESR and a maximum operating temperature of 125°C. Surface mountable with a 7361 metric case code, measuring 7.3mm x 6.1mm x 3.8mm. This general-purpose component is RoHS compliant and supplied on tape and reel.
Package2924
Capacitance470uF
Voltage Rating10V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kyocera TPSV477K010R0060 technical specifications.
General
Capacitance
470uF
Case Code (Imperial)
2924
Case Code (Metric)
7361
Package/Case
2924
Construction
Flat
Depth
6.1mm
Dielectric Material
Tantalum
Dissipation Factor
10%
ESR (Equivalent Series Resistance)
60mR
Features
General Purpose
Height
3.8mm
Height - Seated (Max)
0.148inch
Lead Free
Lead Free
Leakage Current
47uA
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
816uA
RoHS Compliant
Yes
Series
TPS
Termination
SMD/SMT
Tolerance
10%
Voltage Rating
10V
DC Rated Voltage
10V
Width
0.24inch
Compliance
RoHS
Compliant
Datasheet
Kyocera TPSV477K010R0060 Datasheet
Download the complete datasheet for Kyocera TPSV477K010R0060 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

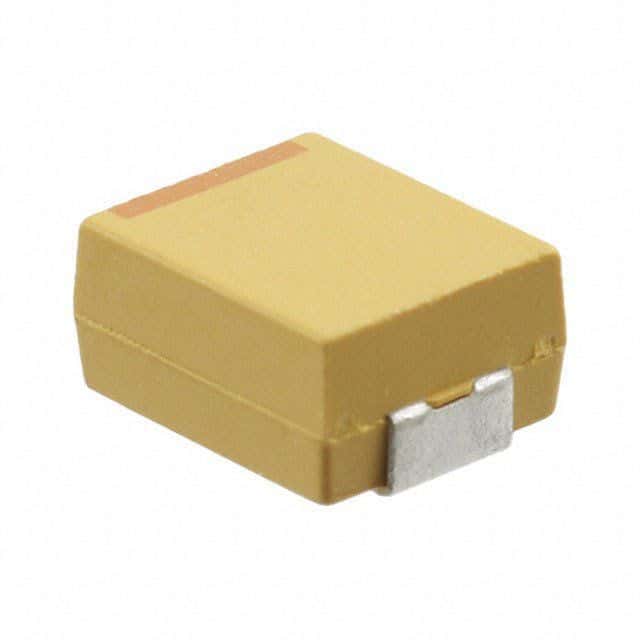

Product Images
