Surface mount capacitor array featuring 4 isolated ceramic dielectric elements with X7R characteristics. Offers a total capacitance of 100nF (0.1uF) at a 10V working voltage with a 20% tolerance. Housed in a 0508 (1220 metric) case code, this component operates across a temperature range of -55°C to 125°C. The array is RoHS compliant and supplied on tape and reel.
Package0508
Voltage10V
Capacitance100nF
Voltage Rating10V
Quick Jump:
Technical Specifications
Kyocera W2A4ZC104MAT2A technical specifications.
General
Capacitance
100nF
Case Code (Imperial)
0508
Case Code (Metric)
1220
Package/Case
0508
Circuit Type
Isolated
Construction
Flat
Depth
2.1mm
Dielectric
X7R
Dielectric Material
Ceramic
Dissipation Factor
10%
Height
0.94mm
Lead Free
Lead Free
Length
2.1mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Capacitors
4
Number of Elements
4
Package Quantity
4000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
IPC
Terminal Pitch
0.5mm
Termination
SMD/SMT
Tolerance
20%
Voltage
10V
Voltage Rating
10V
Voltage Rating (AC)
10V
Width
1.3mm
Working Voltage
10V
Compliance
RoHS
Compliant
Datasheet
Kyocera W2A4ZC104MAT2A Datasheet
Download the complete datasheet for Kyocera W2A4ZC104MAT2A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

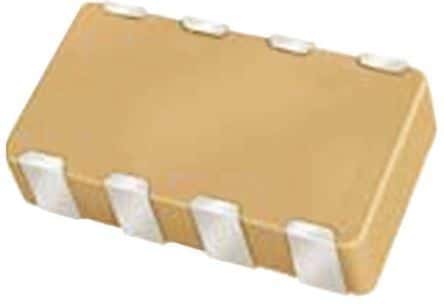

Product Images
