Surface mount capacitor array featuring 330pF capacitance and 100V DC rating. This isolated circuit type component offers 4 elements with C0G dielectric ceramic construction. Measuring 3.2mm length, 1.6mm width, and 1.35mm height, it operates from -55°C to 125°C with a 10% tolerance and dissipation factor. Packaged in tape and reel, this RoHS compliant component is ideal for surface mount applications.
Package0612
Capacitance330pF
Voltage Rating100V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kyocera W3A41A331KAT2A technical specifications.
General
Capacitance
330pF
Package/Case
0612
Circuit Type
Isolated
Construction
Flat
Dielectric
C0G
Dielectric Material
Ceramic
Dissipation Factor
10%
Height
1.35mm
Length
3.2mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Capacitors
4
Number of Elements
4
Package Quantity
4000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
IPC
Terminal Pitch
0.76mm
Termination
SMD/SMT
Tolerance
10%
Voltage Rating
100V
DC Rated Voltage
100V
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Kyocera W3A41A331KAT2A Datasheet
Download the complete datasheet for Kyocera W3A41A331KAT2A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

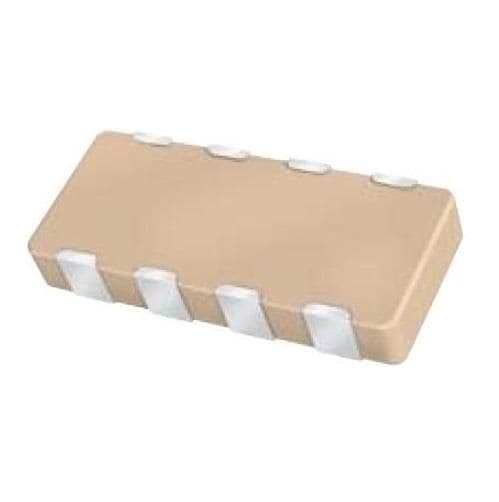

Product Images
