Surface mount capacitor array featuring 4 isolated ceramic elements with X7R dielectric. Offers a total capacitance of 10nF with a 100V DC rating and 20% tolerance. Housed in a 0612 (1.6mm x 3.2mm) case with a 1.35mm height and 0.76mm terminal pitch. Operating temperature range is -55°C to 125°C. RoHS compliant and lead-free.
Package0612
Capacitance10nF
Voltage Rating100V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kyocera W3A41C103MAT2A technical specifications.
General
Capacitance
10nF
Case Code (Imperial)
0612
Case Code (Metric)
1632
Package/Case
0612
Circuit Type
Isolated
Construction
Flat
Dielectric
X7R
Dielectric Material
Ceramic
Dissipation Factor
10%
Height
1.35mm
Lead Free
Lead Free
Length
3.2mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Capacitors
4
Number of Elements
4
Package Quantity
4000
Packaging
Cut Tape
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
IPC
Terminal Pitch
0.76mm
Termination
SMD/SMT
Tolerance
20%
Voltage Rating
100V
DC Rated Voltage
100V
Width
1.6mm
Working Voltage
100V
Compliance
RoHS
Compliant
Datasheet
Kyocera W3A41C103MAT2A Datasheet
Download the complete datasheet for Kyocera W3A41C103MAT2A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

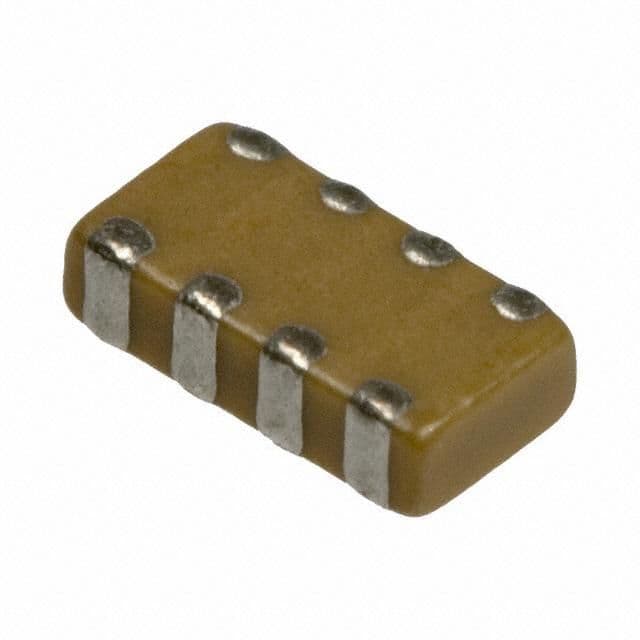

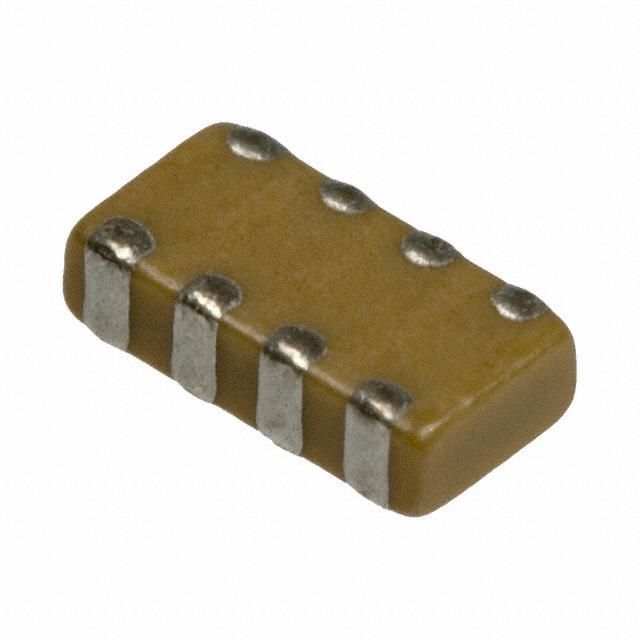

Product Images
