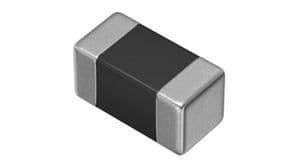

Surface mount ferrite bead chip offering 600 Ohm impedance at 100MHz. Features a 500mA current rating and 0.3 Ohm DC resistance. Constructed with ferrite core material in a 1206 (3216 metric) case size. Operating temperature range is -40°C to 125°C. Packaged on tape and reel for automated assembly.
Frequency100MHz
Package1206
Current Rating500mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Laird HZ1206E601R-10 technical specifications.
General
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Core Material
Ferrite
Current Rating
500mA
Depth
1.8mm
Frequency
100MHz
Height
1.4mm
Impedance
600R
Lead Free
Lead Free
Length
3.2mm
Material
Ferrite
Max Current Rating
500mA
Max DC Current
500mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Lines
1
Package Quantity
3000
Packaging
Tape and Reel
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
HZ
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
100MHz
Weight
0.00952oz
Width
2.5mm
Compliance
RoHS
Compliant
