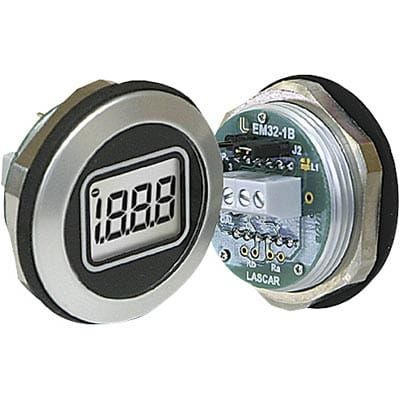

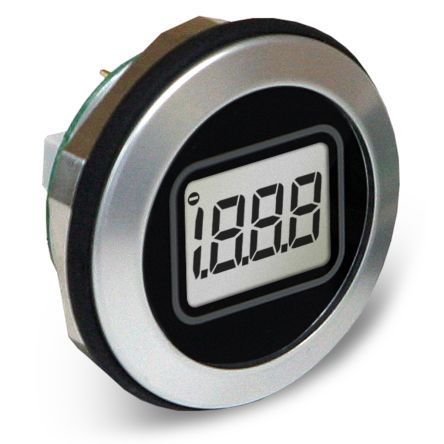

The EM32-1B panel meter from Lascar Electronics features an LCD display with 3.5 characters per row, a diameter of 32.5mm, and a depth of 12mm. It operates within a temperature range of 0-50°C and is rated for IP67, waterproof, and dust tight. The meter has a nominal supply current of 150uA and can be powered with a DC voltage between 3.5V and 14V.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Lascar Electronics EM32-1B datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Accuracy | 0.1% |
| Approvals | NEMA |
| Package/Case | 200 |
| Depth | 12mm |
| Diameter | 32.5mm |
| Display Type | LCD |
| Height | 38.1mm |
| Length | 23.6mm |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage (DC) | 14V |
| Min Supply Voltage (DC) | 3.5V |
| Mount | Panel |
| Nominal Supply Current | 150uA |
| Number Of Characters Per Row | 3.5 |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | No |
| Series | EM32 |
| Termination | PC Pin |
| RoHS | Compliant |
