Lattice Semiconductor
iCE65P04F-TCB196I
FPGA - Field Programmable Gate Array iCE65P 3520 LUTs1.0/ 1.2V Ultra Low-Power
Frequency533MHz
MountingSurface Mount
Quick Jump:
Technical Specifications
Lattice Semiconductor iCE65P04F-TCB196I technical specifications.
General
| Lead Free | Lead Free |
| Max Frequency | 533MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 80Kb |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of I/Os | 148 |
| Number of Logic Blocks (LABs) | 440 |
| Number of Logic Elements/Cells | 3520 |
| Operating Supply Current | 45uA |
| Operating Supply Voltage | 1.2V |
| Package Quantity | 248 |
| Packaging | Tray |
| RAM Size | 81920b |
| Series | iCE65™ P |
Compliance
| RoHS | Not Compliant |
Datasheet
Lattice Semiconductor iCE65P04F-TCB196I Datasheet
Download the complete datasheet for Lattice Semiconductor iCE65P04F-TCB196I to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

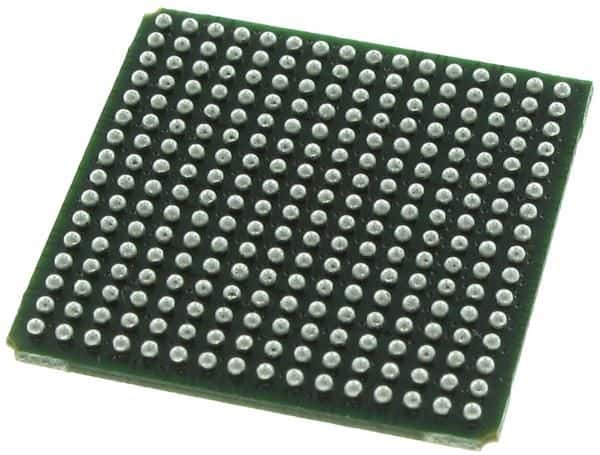

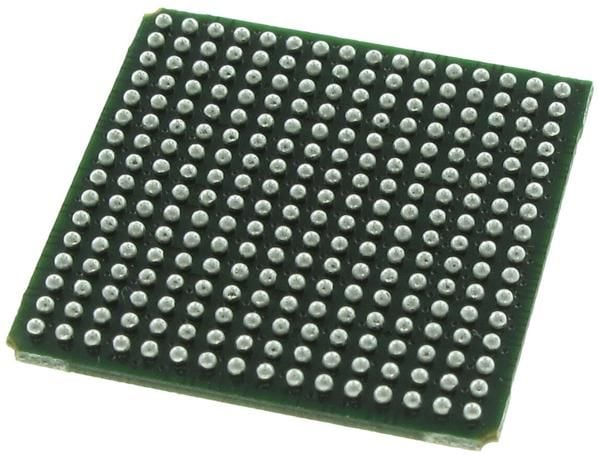

Product Images
