Lattice Semiconductor
LAMXO640E-3TN144E
Flash PLD, 4.9ns, CMOS, PQFP144, 20 X 20 MM, ROHS COMPLIANT, TQFP-144
PackageTQFP
Current14mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Lattice Semiconductor LAMXO640E-3TN144E technical specifications.
General
| Package/Case | TQFP |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 1.26V |
| Memory Size | 6Kb |
| Memory Type | SRAM, |
| Min Supply Voltage | 1.14V |
| Mount | Surface Mount |
| Number of I/Os | 113 |
| Number of Logic Blocks (LABs) | 80 |
| Number of Logic Elements/Cells | 640 |
| Number of Macrocells | 320 |
| Number of Programmable I/O | 113 |
| Operating Supply Voltage | 1.2V |
| Package Quantity | 60 |
| Packaging | Tray |
| Propagation Delay | 4.9ns |
| Radiation Hardening | No |
| RAM Size | 9420.8b |
| RoHS Compliant | Yes |
| Series | LA-MachXO |
| Supply Current | 14mA |
Compliance
| RoHS | Compliant |
Datasheet
Lattice Semiconductor LAMXO640E-3TN144E Datasheet
Download the complete datasheet for Lattice Semiconductor LAMXO640E-3TN144E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

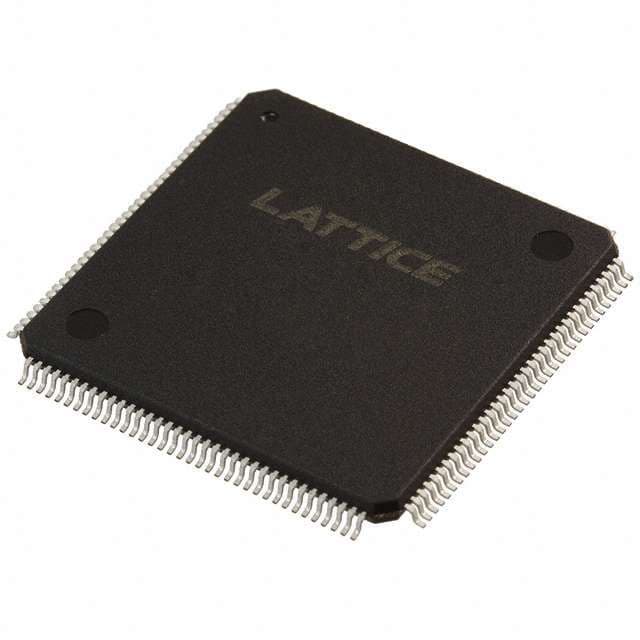

Product Images
