Frequency333MHz
PackageTQFP
Current12mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Lattice Semiconductor LC4128B-75T128C technical specifications.
General
Package/Case
TQFP
Lead Free
Lead Free
Max Frequency
333MHz
Max Operating Temperature
90°C
Max Supply Voltage
2.7V
Memory Type
EEPROM,
Min Operating Temperature
0°C
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of I/Os
92
Number of Logic Blocks (LABs)
8
Number of Logic Elements/Cells
8
Number of Macrocells
128
Number of Programmable I/O
92
Operating Supply Current
12mA
Operating Supply Voltage
2.5V
Package Quantity
90
Packaging
Tray
RoHS Compliant
No
Series
ispMACH® 4000B
Supply Current
12mA
Compliance
RoHS
Not Compliant
Datasheet
Lattice Semiconductor LC4128B-75T128C Datasheet
Download the complete datasheet for Lattice Semiconductor LC4128B-75T128C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

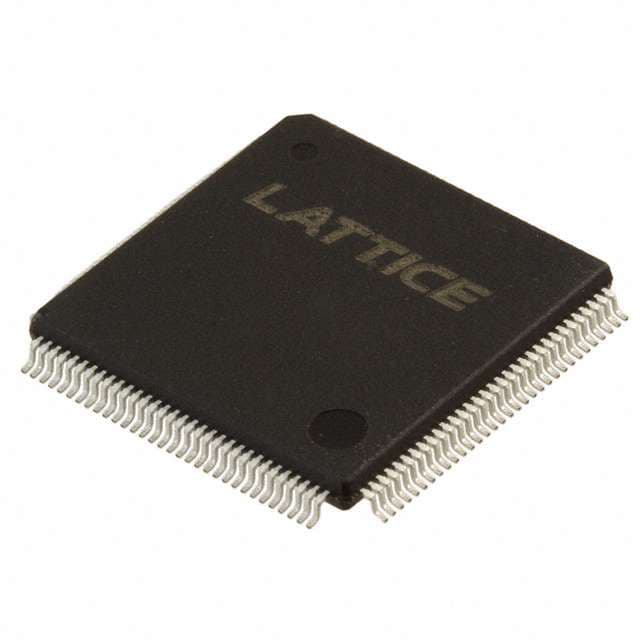

Product Images
