Programmable Logic Device (PLD) featuring 256 macrocells and 16 logic elements. Operates with a 3.3V supply voltage, ranging from 3V to 3.6V, and consumes 12.5mA operating current. Offers 96 I/Os with 128 programmable I/O pins, a propagation delay of 10ns, and a maximum frequency of 322MHz. This surface mount device is housed in a TQFP package and operates across a temperature range of -40°C to 105°C.
Frequency125MHz
PackageTQFP
Current12.5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Lattice Semiconductor LC4256V-10T144I technical specifications.
General
Package/Case
TQFP
Frequency
125MHz
Lead Free
Lead Free
Max Frequency
322MHz
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Type
EEPROM,
Min Supply Voltage
3V
Mount
Surface Mount
Number of I/Os
96
Number of Logic Blocks (LABs)
36
Number of Logic Elements/Cells
16
Number of Macrocells
256
Number of Programmable I/O
128
Operating Supply Current
12.5mA
Operating Supply Voltage
3.3V
Package Quantity
60
Packaging
Tray
Propagation Delay
10ns
Radiation Hardening
No
RoHS Compliant
No
Series
ispMACH® 4000V
Supply Current
12.5mA
Turn-On Delay Time
10ns
Compliance
RoHS
Not CompliantNo
Datasheet
Lattice Semiconductor LC4256V-10T144I Datasheet
Download the complete datasheet for Lattice Semiconductor LC4256V-10T144I to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

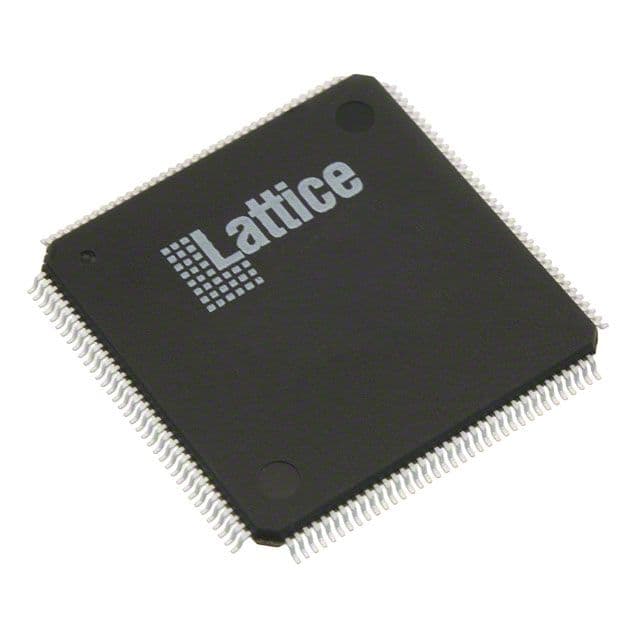

Product Images
