CMOS EE PLD with 256 macrocells, 16 logic elements, and 36 LABs. Features a 7.5ns propagation delay and 7.5ns turn-on delay time, operating at a maximum frequency of 322MHz. This surface mount device offers 96 I/Os and 100 programmable I/Os, with an operating supply voltage range of 3V to 3.6V, typically 3.3V. It operates within a temperature range of 0°C to 90°C and has an operating supply current of 12.5mA.
Frequency178.57MHz
PackageTQFP
Current12.5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Lattice Semiconductor LC4256V-75T144C technical specifications.
General
Package/Case
TQFP
Frequency
178.57MHz
Lead Free
Lead Free
Max Frequency
322MHz
Max Operating Temperature
90°C
Max Supply Voltage
3.6V
Memory Type
EEPROM,
Min Operating Temperature
0°C
Min Supply Voltage
3V
Mount
Surface Mount
Number of I/Os
96
Number of Logic Blocks (LABs)
36
Number of Logic Elements/Cells
16
Number of Macrocells
256
Number of Programmable I/O
100
Operating Supply Current
12.5mA
Operating Supply Voltage
3.3V
Package Quantity
60
Packaging
Tray
Propagation Delay
7.5ns
Radiation Hardening
No
RoHS Compliant
No
Series
ispMACH® 4000V
Supply Current
12.5mA
Turn-On Delay Time
7.5ns
Compliance
RoHS
Not CompliantNo
Datasheet
Lattice Semiconductor LC4256V-75T144C Datasheet
Download the complete datasheet for Lattice Semiconductor LC4256V-75T144C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

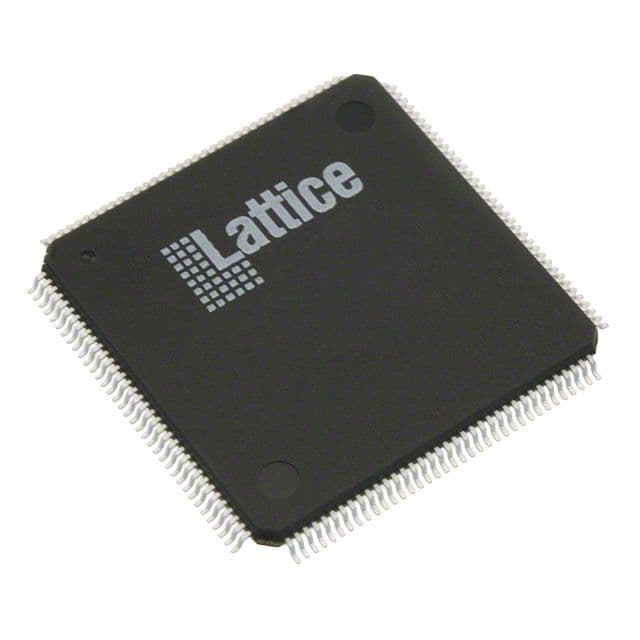

Product Images
