Lattice Semiconductor
LC4256ZE-5MN144C
EE PLD, 5.8ns, 256-Cell, CMOS, PBGA144, 7 X 7 MM, 0.5 MM PITCH, LEAD FREE, CSBGA-144
Frequency277.78MHz
PackageTFBGA
Current341uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Lattice Semiconductor LC4256ZE-5MN144C technical specifications.
General
Package/Case
TFBGA
Frequency
277.78MHz
Lead Free
Lead Free
Max Frequency
200MHz
Max Operating Temperature
90°C
Min Operating Temperature
0°C
Max Supply Voltage
1.9V
Memory Type
EEPROM,
Min Supply Voltage
1.7V
Mount
Surface Mount
Number of I/Os
108
Number of Logic Blocks (LABs)
16
Number of Logic Elements/Cells
16
Number of Macrocells
256
Number of Programmable I/O
108
Operating Supply Current
341uA
Operating Supply Voltage
1.8V
Package Quantity
360
Packaging
Tray
Propagation Delay
5.8ns
RoHS Compliant
Yes
Series
ispMACH® 4000ZE
Supply Current
341uA
Compliance
RoHS
Compliant
Datasheet
Lattice Semiconductor LC4256ZE-5MN144C Datasheet
Download the complete datasheet for Lattice Semiconductor LC4256ZE-5MN144C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

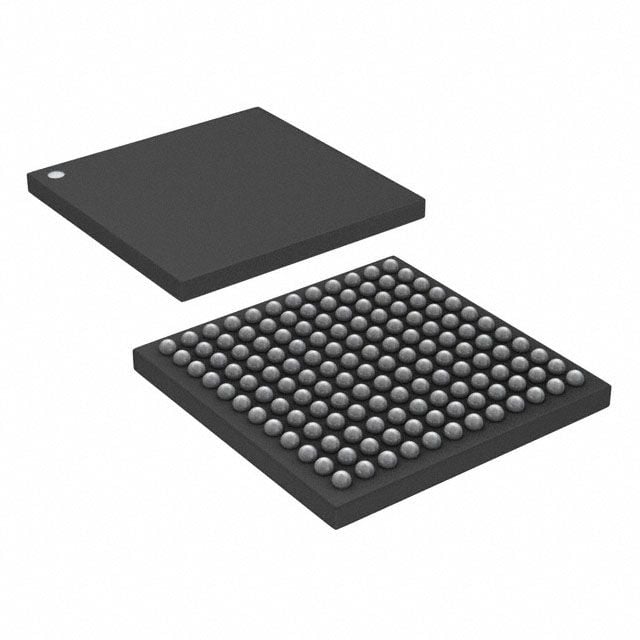

Product Images
